Alpine HP42 Pellet Stove Replacement Room Blower Grommet and Bushing set

For Alpine HP42 Pellet Stove – Room Blower Assembly

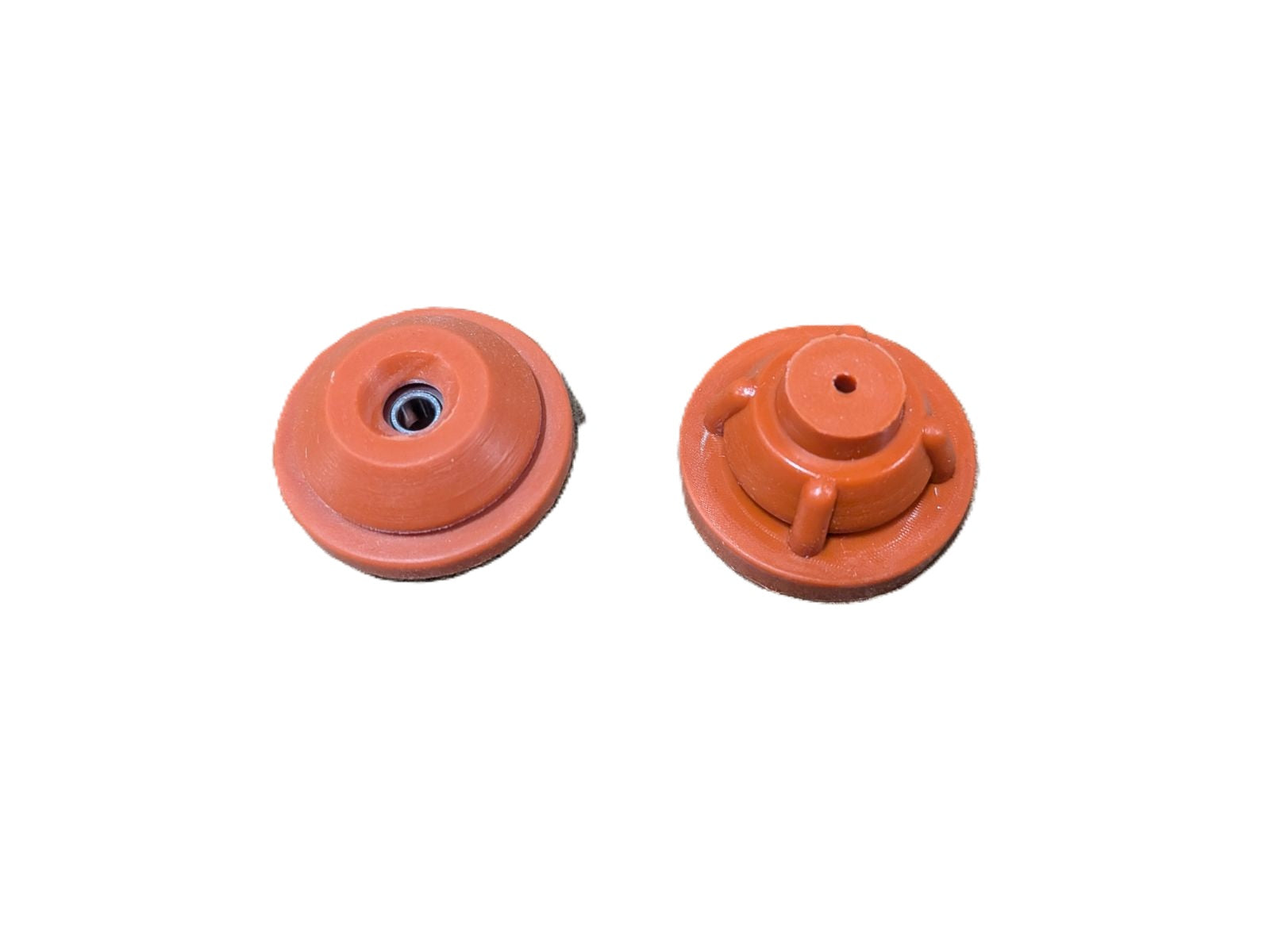

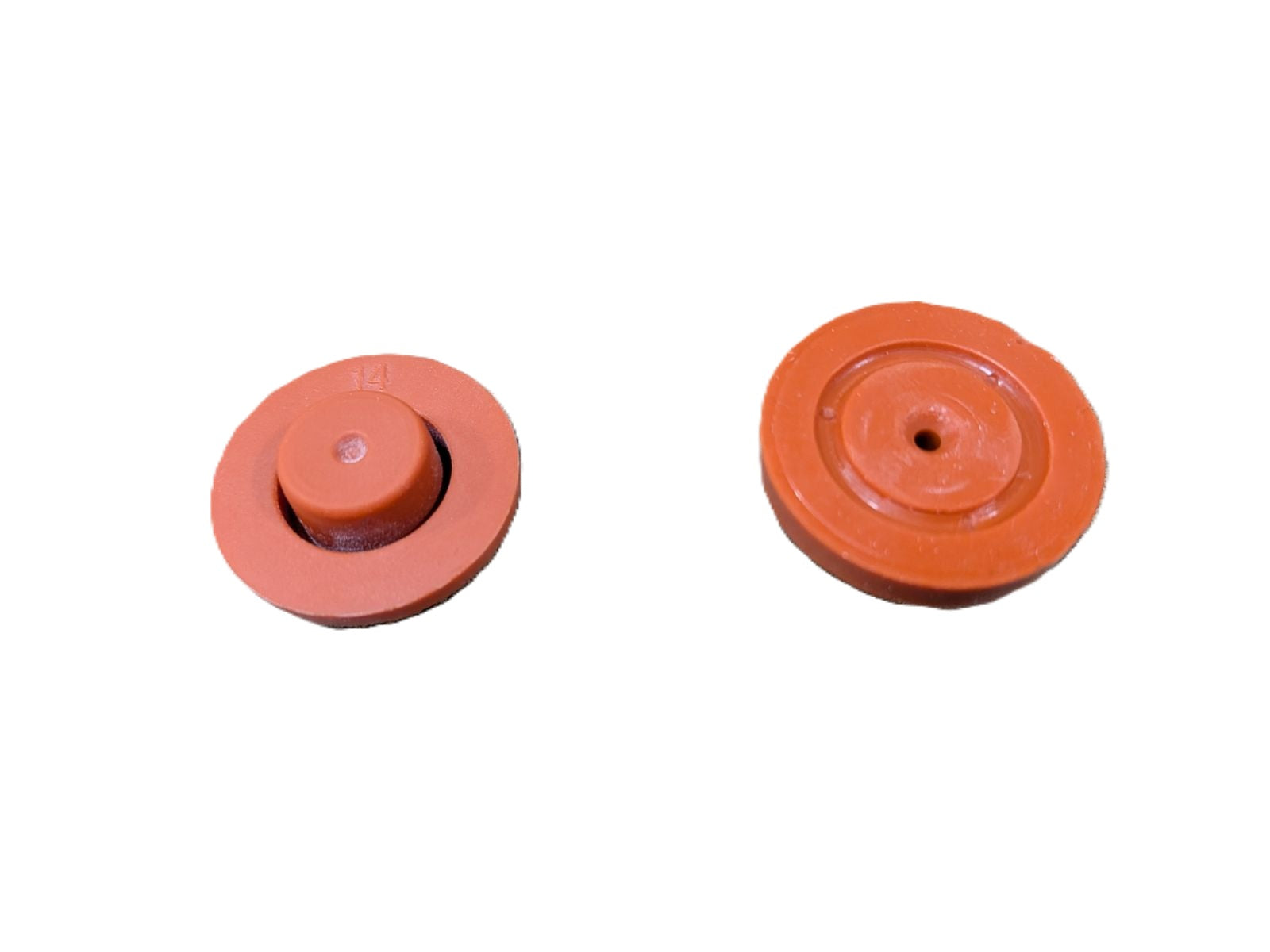

This replacement kit includes the orange grommet and bushing components for the room blower assembly used in the Alpine HP42 Pellet Stove.

These parts are designed to reduce vibration and properly seat the blower motor within the mounting bracket.

Compatibility

• Alpine HP42 Pellet Stove

• Room Blower Assembly (HP42 configuration)

Note: This listing includes the grommet and bushing only. Motor, bracket, and other hardware are not included.

Installation Instructions

When replacing the grommet, bushing, or motor:

1. Locate and remove the small Phillips-head machine screw securing the motor to the bracket (positioned on the side).

2. Once the screw is removed, rotate the motor counter-clockwise.

3. Twist until the motor releases from the mounting bracket.

4. Replace components as needed and reinstall in reverse order.
